Highly Reliable Chemical Hoses

The perfect type of hose for the harshest of chemicals

Chemical Resistant Hoses for Every Application

ABOUT OUR CHEMICAL RESISTANT HOSES – The TCH Advantage

TCH Industries chemical hoses are available in many variations of chemical and acid- resistant materials and thicknesses to handle most corrosive fluids. These hoses are engineered for applications such as the transfer of chemicals in chemical processing, transfer and loading/unloading of liquid chemicals, for diverse technological processes in the chemical, food, pharmaceutical industry, numerous industrial processes as well as laboratories.

With chemical hoses, the inner hose layer must be sufficiently resistant to chemical corrosion. Due to this requirement, these hoses are typically constructed with various Tube and Cover compounds from EPDM to neoprene, pure gum rubber, UHMW, SBR, Hypalon®, nitrile, butyl, Viton®, PTFE and polyethylene for high flexibility, abrasion and chemical resistant capability. The chemical hoses are typically reinforced with textile cord or braid, if necessary, with steel wire helix in the case of suction delivery hoses.

When selecting the right type of hose in terms of chemical resistance, you need to make sure you gather several pieces of information such as those listed below.

  • Type of medium (substance transferred by the hose)
  • Its state (liquid or gas)
  • Concentration and temperature of the substance
  • Working pressure

It is important to keep in mind that chemical suction & discharge hoses must not be used at temperatures and pressures above those recommended by the manufacturer.

If you have any questions about your chemical hose application, please contact one of our chemical hose specialists.

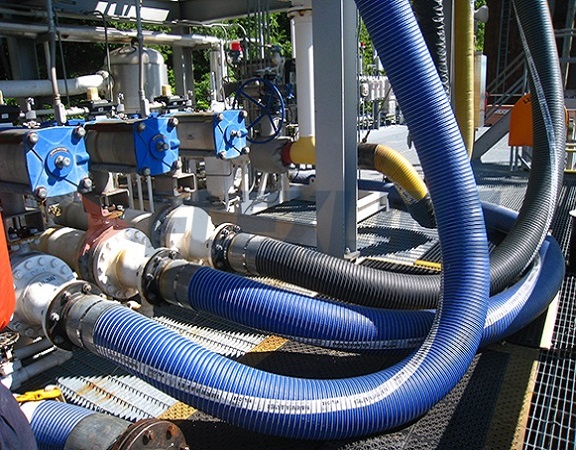

TCH Industries Chemical Hoses in Action

Chemical Hoses Typically Used

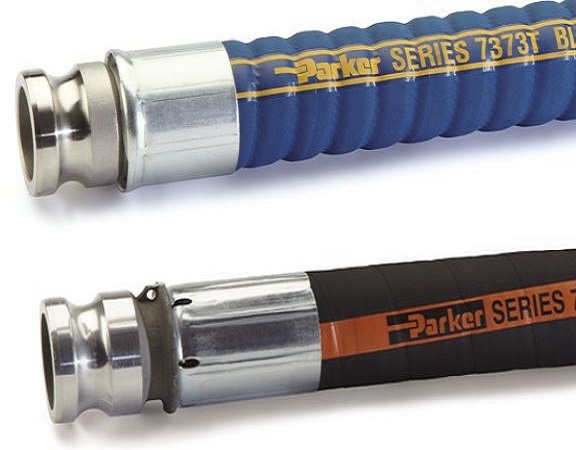

Hose #1 – 7373T Blue Thunder

Blue Thunder Large Diameter UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 200 psi.

Markets best suited for this hose are:

  • General Industrial
  • Oil & Gas
  • Transportation

Hose #2 – SWC693 Titanflex

Wildcatter Oilfield UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 250 psi.

Markets best suited for this hose are:

  • General Industrial
  • Oilfield
  • Oil & Gas
  • Transportation

Hose #3 – SWC683 Titanflex

Titanflex Modified XLPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 250°F and 250 psi.

Markets best suited for this hose are:

  • General Industrial
  • Oil & Gas
  • Transportation
